REF: 228200000

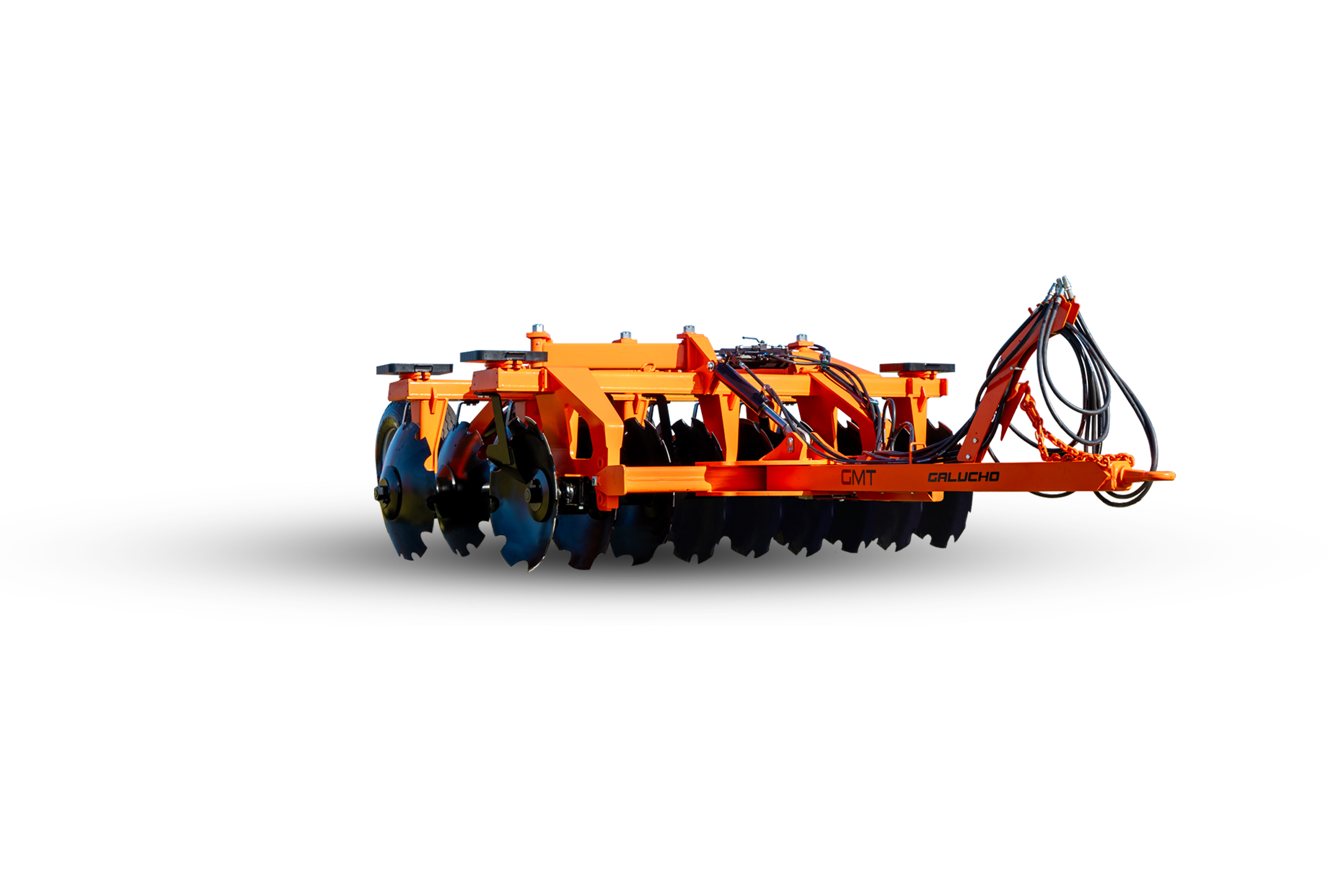

The Towed Deforestation Grid is ideal for incorporating large volumes of waste from forest areas or areas with a high density of wild plants.


Chassis:

  • Frames made of welded steel plate, bodies interconnected by articulated systems;
  • Boom made of welded steel plate;
  • Eye with greaseable bush;
  • Signaling and lighting kit.


Discs:

  • 50 mm square disc shaft made of special treated steel;
  • Ø810x10mm (32") flat and cut-out discs;
  • Ø910x12mm (36") flat and cut-out discs;
  • Separators between discs of 13"- 33 cm.


Bearings:

  • QD 50-13" bearings on 32" discs;
  • QD 50-13" bearings on 36" discs;
  • With 2 tapered bearings protected by double retainers on each side;
  • Very robust scrapers with independent adjustment.


Working angle:

  • Hydraulically adjustable working angle;
  • Hydraulically operated opening and closing of the bodies.


Wheels:

  • Transport wheels: 2x 400/60-15.5 14T, with hydraulic adjustment.


Option:

  • Counterweight kit 40 Kg (max: 12 per machine)


Main advantages:

  • Large discs;
  • Greater robustness and weight;
  • High soil penetration capacity.
