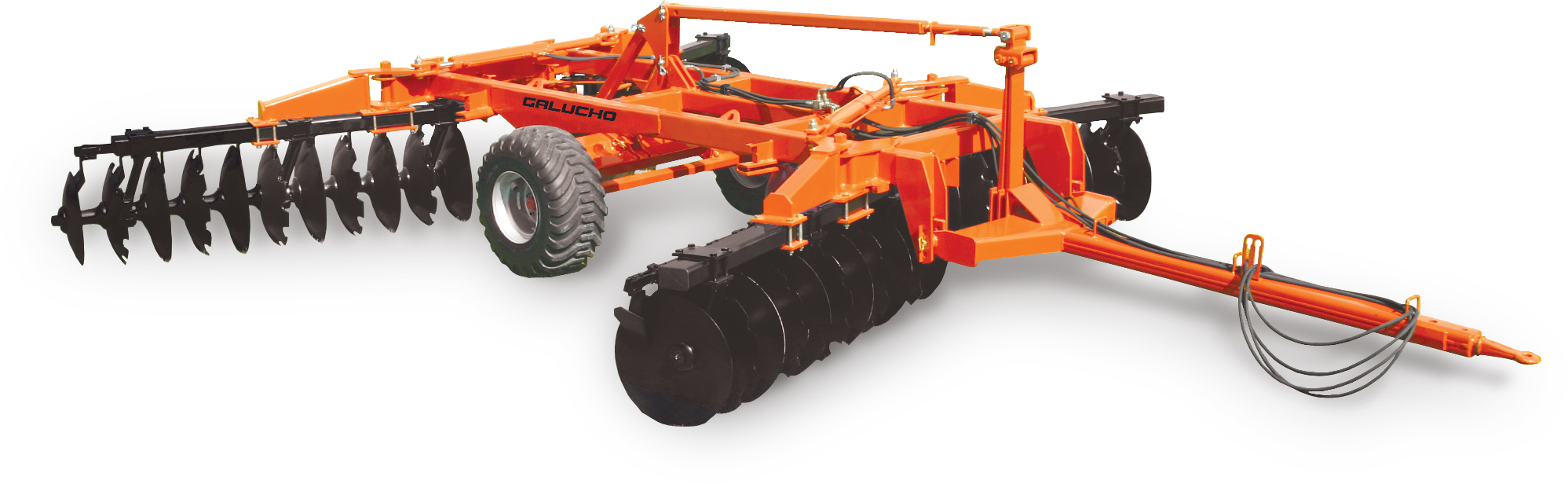

GXL



OPTIONS:



OPTIONS:



OPTIONS:



OPTIONS:



OPTIONS:



OPTIONS:



OPTIONS:



OPTIONS:



OPTIONS:



OPTIONS:


Quantity:

Add

REF: 225950001


Frame:

  • Rigid one-piece frame in double C profile 150x100 mm made of high elastic steel.
  • Edged welded steel plate trailed drawbar, fixed to the main frame by pivots and simple parabolic springs, double on the models with more than 38 discs, or when assembled with rollers. Rotated greasable hitch.


Discs:

  • Notched discs in the front body and plane disc on the rear with 6 mm thickness, on request.
  • 38 mm square discs axles in special treated steel.
  • 38/9 “ bearings square of 40 mm with 2 taper roller bearings protected by double lip seal.
  • Space between discs: 9” - 0,23 m.
  • Finishing disc.


Working Angle:

  • Mechanical opening of the working angle.
  • Working depth mechanical adjustment in the wheel train.


Wheels:

  • Transport and depth control wheels: 2x10.0/75 15 12T in the 26 and 30 discs models, 2x11.5/80 15 12T in the 34 and 38 discs, 2x400/60 15,5 14T in the 42 discs model.
