SKELETO - Semirreboque Madeireiro

REF:


High yield strength steel chassis

  • Mechanically welded stringers joined by crossbars;
  • JOST KLK HE 1100-22 12T swivelling lift;
  • 2200 mm 125 kN hooking jib;
  • Manual load-bearing shoes;
  • Aluminium bumpers.


Rolling Equipment

  • Air suspension;
  • Set of 3 10.5-tonne fixed axles with twin wheels (Assali Stefen brand);
  • 13 245/70 R17.5 wheels (w/ 1 spare wheel).



Braking System

  • Drum brakes;
  • Two-way CE with load-correcting brake valve;
  • Pneumatic parking brake;
  • EBS 4S-3M.


Lighting and Signalling

  • Two 9-function rear lights;
  • Front width indicator lights and side marker lights;
  • Rear reflector plates.


Bodywork

  • Bottom made of 4-6 mm non-slip sheet and Zazange wood;

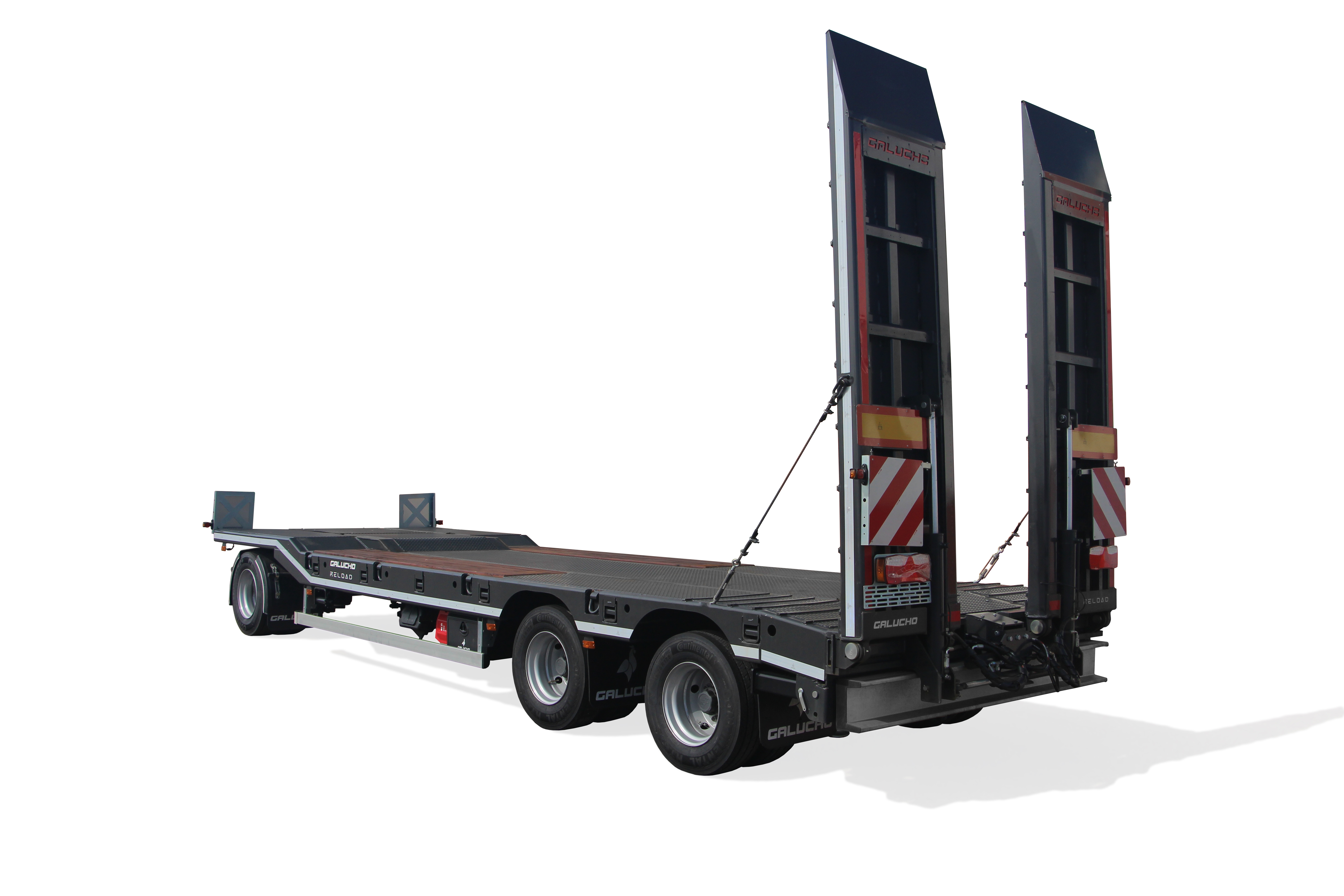

  • Hydraulically operated rear ramps;
  • 12 250 mm telescopic reamers (6 on each side).


Hydraulic Equipment

  • 2 hydraulic cylinders for raising/lowering the ramps;
  • 2 hydraulic cylinders for transverse displacement of the ramps (970 mm adjustment in total).


Miscellaneous Equipment

  • Spare wheel bracket;
  • 30 litre water tank;
  • Plastic toolbox;
  • 2 wheel chocks.


Surface Treatment and Painting

  • Automatic steel shot blasting;
  • 2-component polyurethane anti-corrosion primer;
  • 2-component acrylic enamel finish.



  • Fire extinguisher box;
  • Lashing rails;
  • Basket for accessories/wood;
  • Reversing beep.
