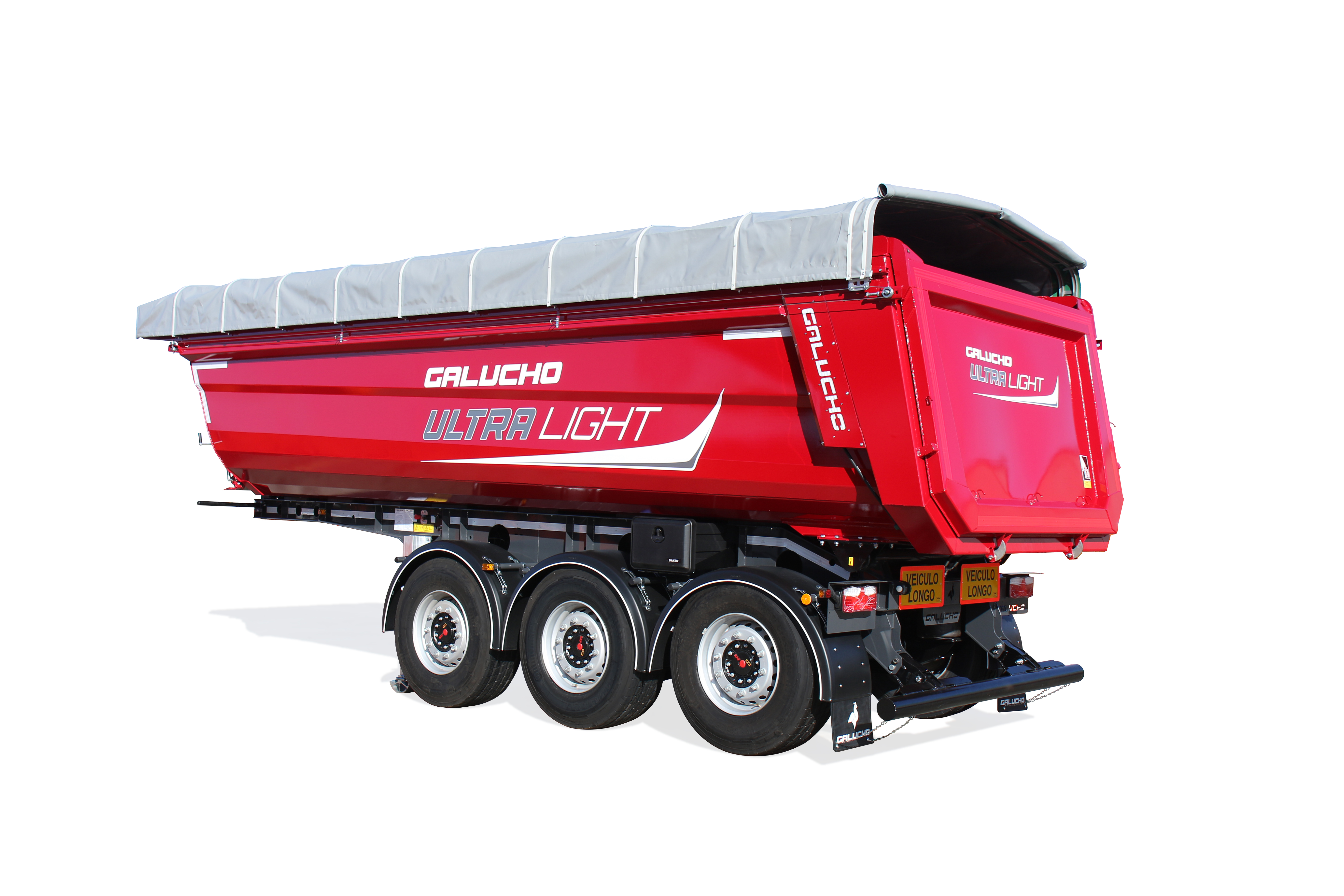

Ultra Light – 3 Axle Tipping Semitrailer

REF: 51762626b420

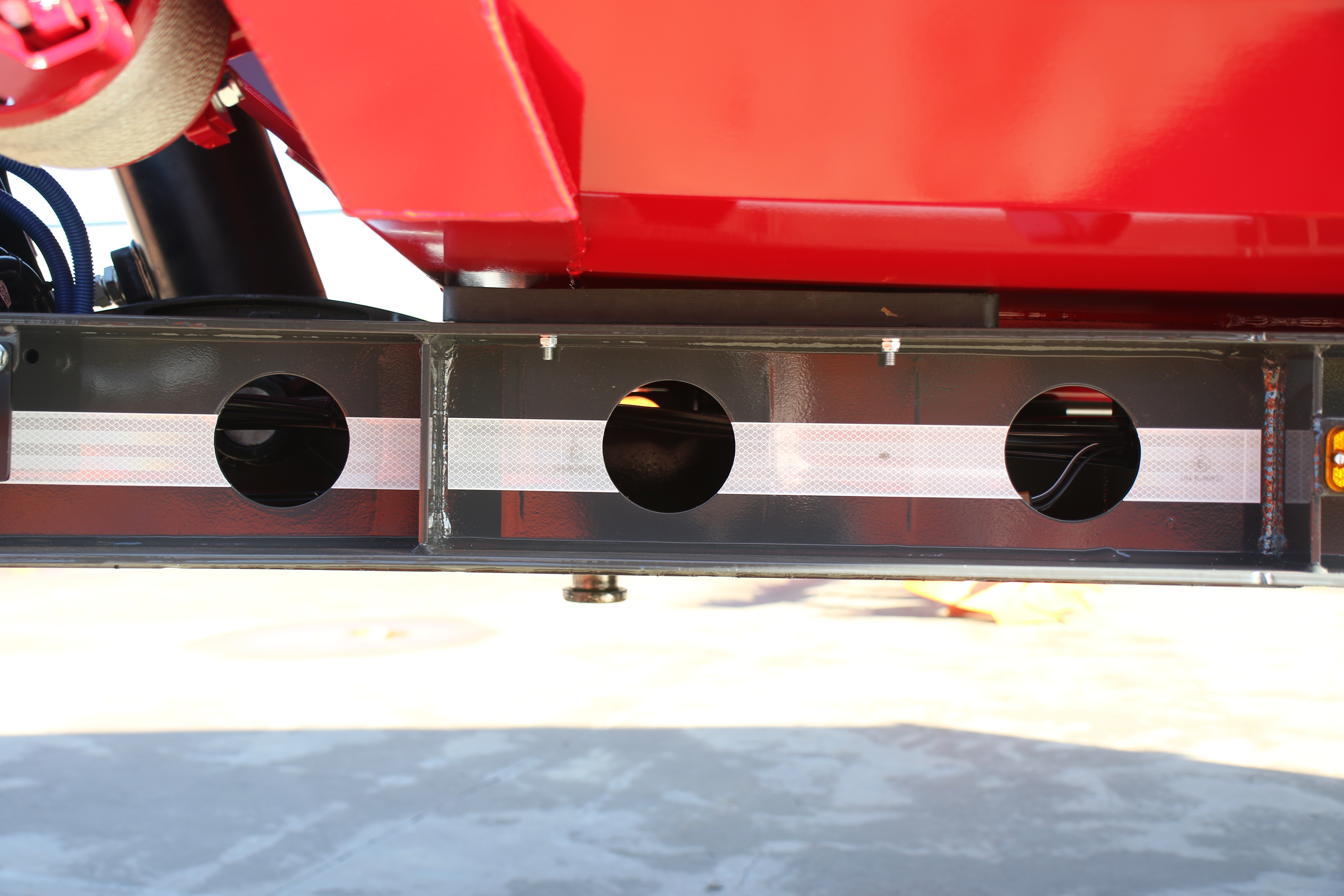

Chassis made of high tensile steel


  • Mechanically welded beams, connected by crossbeams;
  • Simplified chassis (4090 mm);
  • Removable 2” pivot;
  • Mudguard in PVC, with anti-spray flap ;
  • Articulated rear bumper.

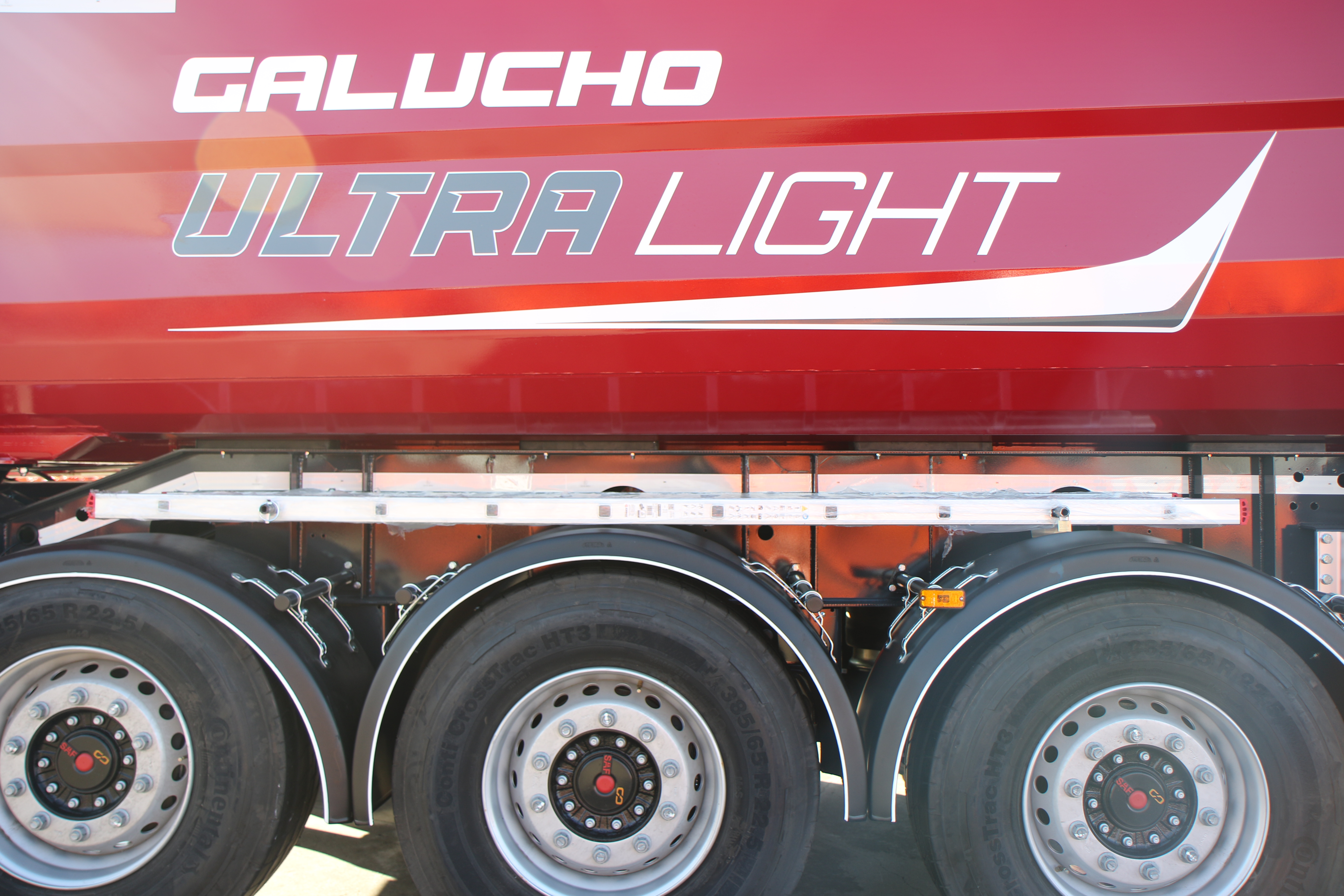

Rolling Equipment


  • Pneumatic suspension;
  • Pneumatic lift of the 1st axis with automatic descent;
  • Set of three single wheel axles, 9 ton (SAF brand);
  • 6 Wheels Continental 385/65 R22.5.



Braking System


  • EC two-way valve train with brake correction valve depending on the load;
  • Pneumatic parking brake;
  • EBS with traction control and anti-rollover (ESP+RSP), with 1 sensored axis.



Landing gear


  • Hand-operated aluminium landing gear.



Lighting and Signalling


  • Set of two rear lights with 9 functions;
  • Width delimiter lights at the front and side signalling;
  • Rear reflector plates.



Tripartite Conical Body 22 m3


  • Bottom in HARDOX 500 TUF plate 4 mm thick
  • Sides, front flap and rear door in HARDOX 450 plate - thickness 3.2 mm;
  • Rear gravity lift gate with double articulation;
  • Eccentric door locking system.



Hydraulic Equipment


  • Front hydraulic cylinder with pressure regulating valve ( Hyva ).



Miscellaneous Equipment

  • Aluminum air tanks;
  • Water tank 30 liters;
  • PVC tool box;
  • Aluminum side ladder;
  • Manual sliding awning;
  • Reverse gear audible signal.



Surface Treatment and Painting


  • Automatic pickling by steel grit;
  • Anticorrosive primer, 2-component polyurethane;
  • 2 component acrylic enamel finish.
  • Stabilizer of the box;
  • Spare wheel support with lift;
  • Hydraulic opening tailgate, single effect;
  • Electric sliding awning;
  • Speedline aluminum rims ;
  • Two-speed telescopic landing gear;
  • 2nd lifting axis;
  • Bellows protections;
  • Detachable rear add-on;
  • Box for extinguisher of 6 kg;
  • Wheel chocks (unit);
  • Michelin tires;
  • Customer publicity;
  • C5 painting;
  • Charge pressure gauge;
  • Odometer.
